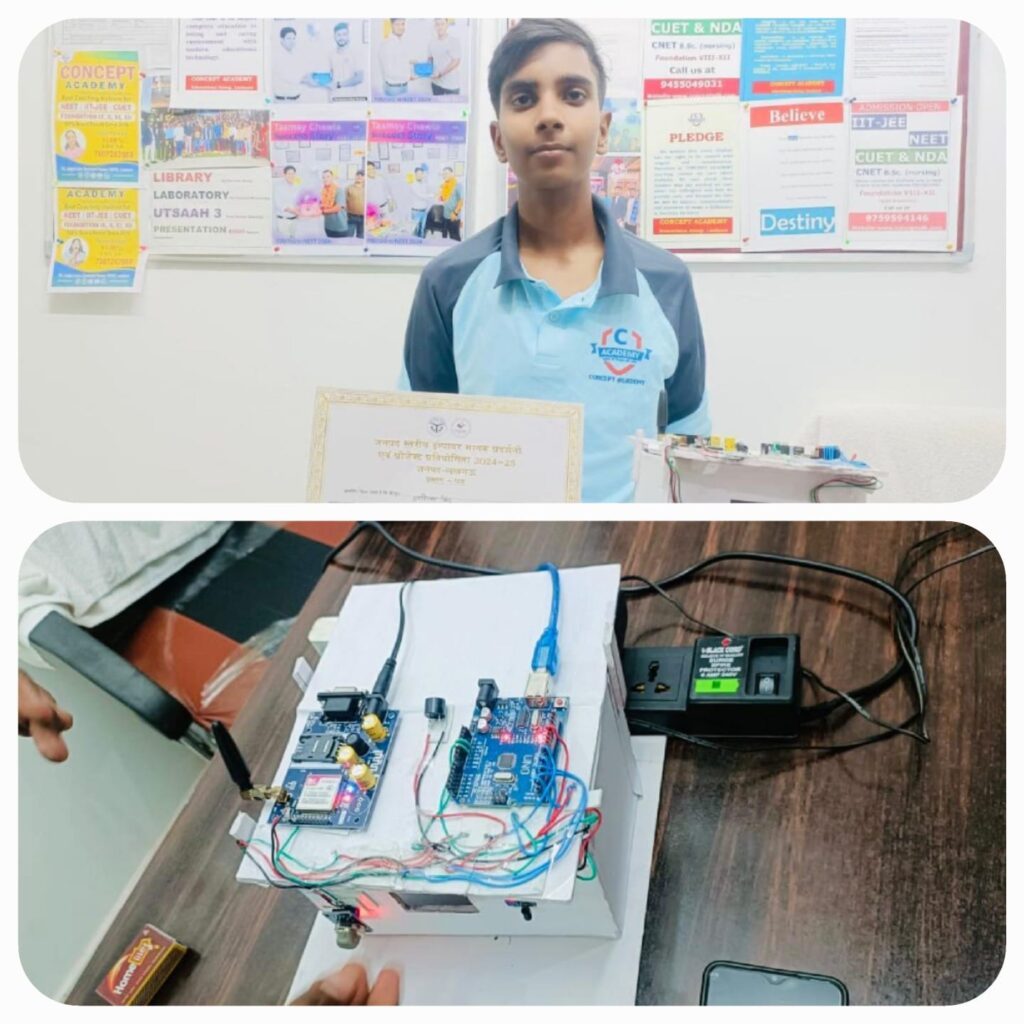

Project Selected by Govt of India in Inspire Manak Award
🎉 बधाई हो आदित्य बिंद को! 🎉
पुत्र श्री विपिन कुमार | कक्षा 10 | Concept Academy
हमें यह बताते हुए अत्यंत गर्व हो रहा है कि आदित्य बिंद ने दिनांक 24 जुलाई 2025 को आयोजित Inspire MANAK Award 2025-26 में भाग लिया और अपने भौतिक विज्ञान परियोजना “Fire Alert System” को गर्व से प्रस्तुत किया। 🔥🔔
इस परियोजना को उन्होंने अपने विज्ञान शिक्षक श्री नाज़िम हुसैन की देखरेख में तैयार किया। नाज़िम सर ने उन्हें इस प्रतियोगिता में भाग लेने के लिए प्रेरित किया और हर कदम पर मार्गदर्शन दिया। 👏
यह Concept Academy के लिए गर्व का क्षण है कि हमारे एक होनहार छात्र ने राष्ट्रीय मंच पर अपनी प्रतिभा और नवाचार क्षमता का प्रदर्शन किया।
✨ टीम Concept Academy की ओर से ढेरों शुभकामनाएं —
आदित्य, तुम्हारा भविष्य उज्ज्वल हो, ऐसे ही आगे बढ़ते रहो! 🚀
– Team Concept Academy
“जहां चाह, वहां राह – और मेहनत से ही सपने हकीकत बनते हैं।”
1. Project Title: OHM’S LAW
1. AIM
To verify Ohm’s Law by plotting a graph between potential difference (V) and current (I) across a resistor, and determine its resistance from the slope.
2. THEORY
Ohm’s Law states that the current (I) flowing through a conductor is directly proportional to the potential difference (V) across its ends, provided the temperature and other physical conditions remain constant.
Mathematically:
V = I × R
Where:
V = Voltage (Volts)
I = Current (Amperes)
R = Resistance (Ohms, Ω)
A graph of V vs. I should be a straight line passing through the origin.
3. APPARATUS REQUIRED
– Resistor (≈ 10 Ω)
– Ammeter (0–1 A)
– Voltmeter (0–5 V)
– Battery eliminator or dry cells
– Rheostat
– Connecting wires
– Key (switch)
4. CIRCUIT DIAGRAM
5. PROCEDURE
1. Set up the circuit as shown.
2. Close the key and adjust the rheostat to vary current.
3. Note the readings of the ammeter and voltmeter.
4. Repeat for at least five different current values.
5. Plot a graph with V on the Y‑axis and I on the X‑axis.
6. Determine the resistance from the slope (R = ΔV/ΔI).
6. OBSERVATION TABLE
| S. No | Current I (A) | Voltage V (V) |
| 1 | 0.1 | 1.0 |
| 2 | 0.2 | 2.0 |
| 3 | 0.3 | 3.0 |
| 4 | 0.4 | 4.0 |
| 5 | 0.5 | 5.0 |
7. GRAPH
8. RESULT
– The graph is a straight line, verifying Ohm’s Law.
– The resistance calculated from the slope is approximately 10 Ω.
9. CONCLUSION
Ohm’s Law is successfully verified—voltage across a resistor is directly proportional to the current through it under constant conditions.
10. PRECAUTIONS
– Ensure all connections are tight and correct.
– Use the key to switch on/off only during measurements.
– Avoid excessive current to prevent heating.
– Take readings promptly to avoid changes due to heating.
– Maintain the same temperature throughout the experiment.
